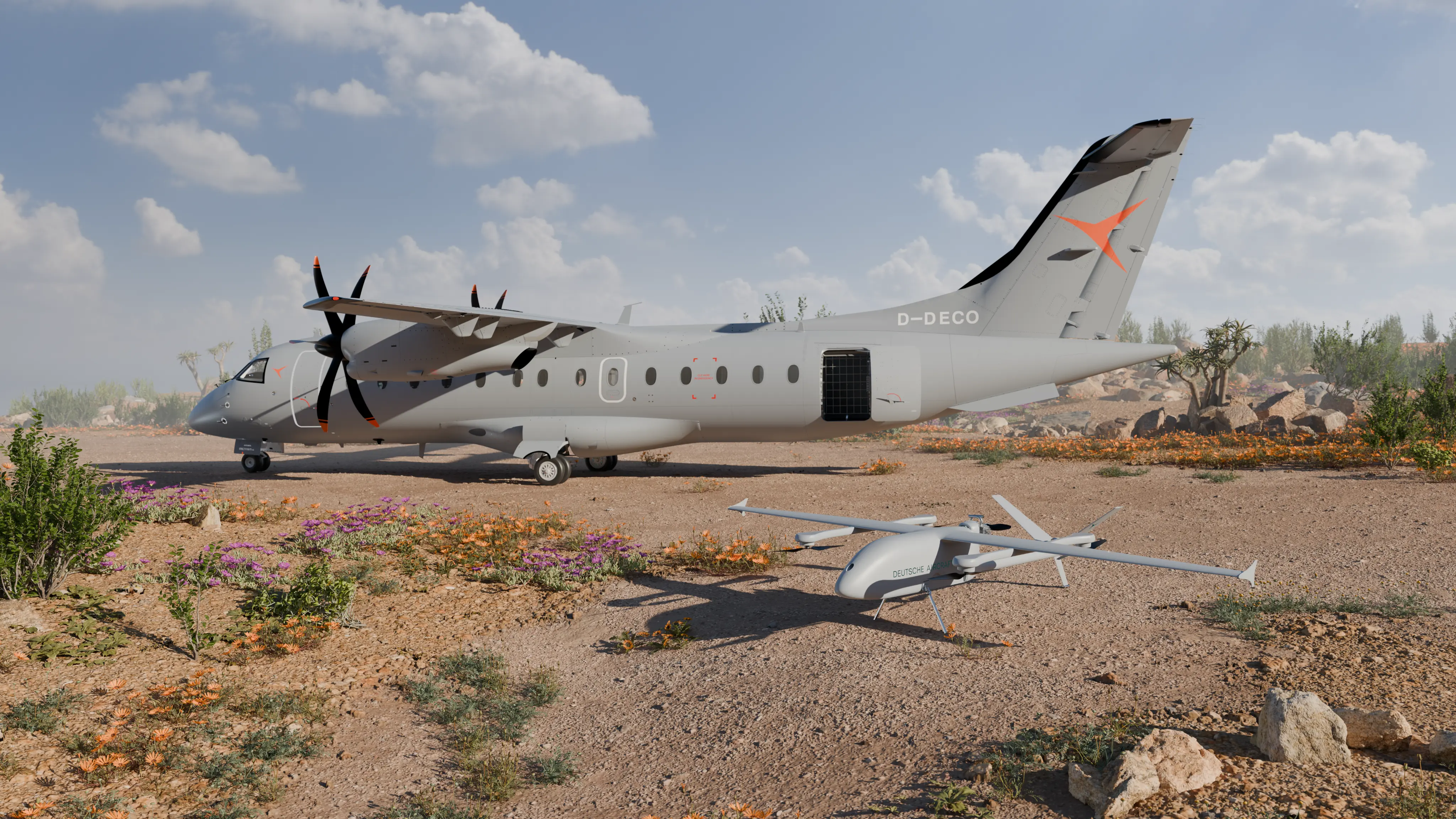

Deutche Aircraft Drone

Deutsche Aircraft Drone is the ideal UAS solution for tactical multi-mission land and ship-based operations, providing the optimum payload & endurance capacity in its class.

Contact us

DEUTSCHE AIRCRAFT DRONE

Vertical Takeoff & Landing From 10m x 10m Area, Without Needing Additional Equipment or Runway

x

Up to 16 Hours Flight Time

x

GNSS Independent ESEN
Vision Based Navigation (GöRDES)

x

Triple Redundant Navigation
System

x

Dual Redundant Flight
Control System

x

Dual Redundant Datalink

x

Dual Redundant Electrical
System

x

Non-ITAR Product

x

15 Min Assemble & Disassemble Time by Two Technicians

x

Jam Resistant GNSS

x

Ground Control Station & Ground Data

x

Terminal Handover Capability

x

NATO AEP-83 Airworthiness Compliant Design

x

NATO AEP-84 (Former 4586)
Level 4 Interoperability

x

Technical Specifications

110kg

MOTW

26kg

Payload + fuel capacity

Up to 16h

Endurance

150km

LOS range

18,000ft

Service ceiling (MSL)

52-85kts

Cruise speed

Wind Limits

Takeoff / Landing (crosswind)
15 kts
Takeoff / Landing (crosswind)
40 kts

Dimensions & Structure

Wingspan
5.76 m
Length
3.62 m
Takeoff / Landing
VTOL (Multirotor)

Propulsion & operation

Engine
2-stroke / 15 HP
Fuel type
Gasoline / HF
Operational temp
−30 °C to +55 °C

Available Payloads

EO/IR (Standard)
Wide Area Surveillance
COMINT/DF
Vision-Based Navigation
ELINT
AIS
SAR
Communication Relay
Mapping Camera / LIDAR

Mobile Configuration

Whole system stored and transported in two vans.
First Van: Containing Control Station.
Second Van: Containing Two UAVs,Transportation Stations, Mobile Generator.

Military Configuration

Whole system stored and transported in two shelters.

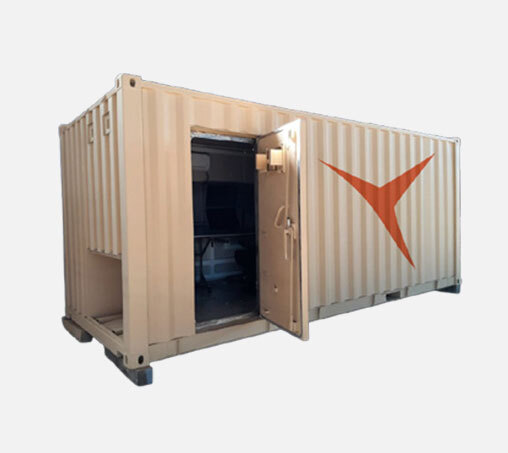

20 ft CSC Certified Shelter Containing Two UAVs, GCS & TaS Stations.

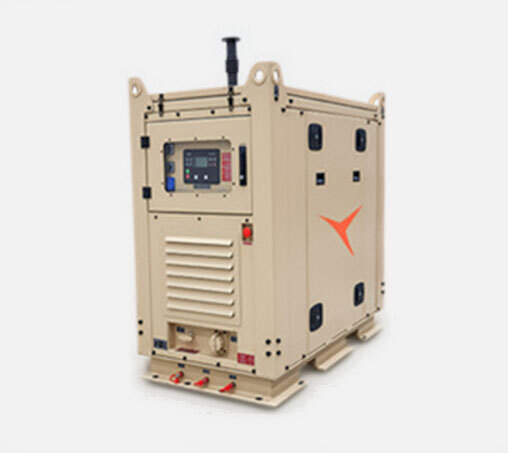

10ft Shelter Containing PGS and Fuel Tanks.
